Blackmagic Design DeckLink Quad 2

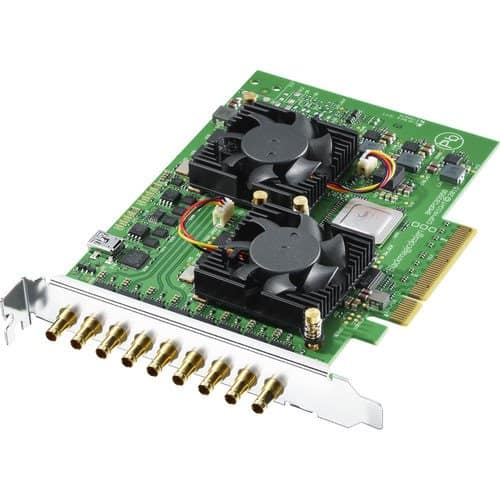

Description The Blackmagic Design DeckLink Quad 2 is an 8-lane PCIe card that features eight bi-directional 12-bit SD/HD/3G-SDI connectors that are independently configurable to provide any combination of eight capture or playback channels at up to 1080p60. The card supports compressed video formats such as ProRes and DNxHD, as well as uncompressed 10-bit 4:2:2 and 4:4:4 video, making it ideal for use in both live broadcast and post production. It is compatible with Mac, Windows, and Linux computers and is supported by a wide range of software applications. For use with applications that don’t capture video on their own, Blackmagic’s Media Express software is included, allowing you to capture, organize, and manage your media. Product Highlights 8 Independent SDI Capture & Playback Channels In Single Card SD/HD Supported Formats 8x Bi-Directional 12-Bit SD/HD Independently Configurable As Either Input or Output SDI Video Inputs 8x Bi-Directional 12-Bit SD/HD Independently Configurable As Either Output or Input SDI Video Outputs 16 Channels Embedded In SD & HD SDI Audio Inputs 16 Channels Embedded In SD & HD SDI Audio Outputs Tri-Sync or Black Burst Sync Input
